Minco Customized 150W 120W 80W Electric Underfloor Foil Heating Film

Minco Customized 150W 120W 80W Electric Underfloor Foil Heating Film

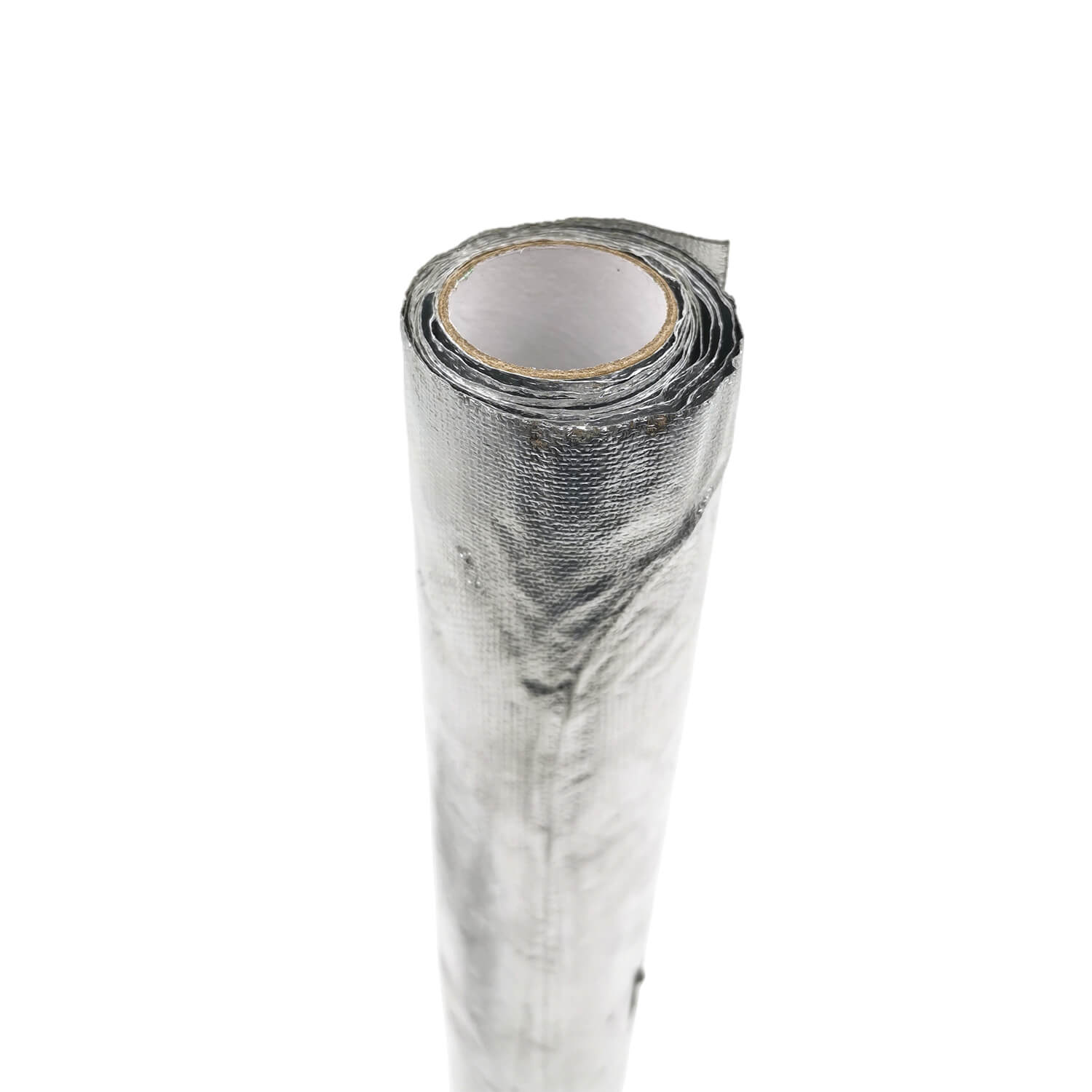

F-mat underfloor heating mats consist of a twin conductor heating cable with fluoropolymer insulation and embed in a reinforced aluminum foil mat. The mat total thickness is ultra-thin, decreasing the floor height and increasing the comfort level

  • Model :

    Aluminum foil mat
  • Working voltage :

    200~240V (120V is customized)
  • Rated power :

    100W/m2, 150W/m2, 200W/m2, 300W/m2 optional
  • Color :

    color customized
  • Order(MOQ) :

    1
  • Product Details

F-mat underfloor heating mats are designed for wooden floor, laminated floor and under carpet heating systems.

F-mat underfloor heating mats can be cut and turned to achieve the required floor coverage and multiple mats can be joined together to cover large areas. When fitting underfloor heating, a suitable insulation should always be used (especially over concrete sub floors).

80W/m² ,120W/m² and 150W/m² mats are provided for option. The 150W/m² electric heating system can be used as a primary heat source, just for floor warming.

Product name
Aluminum foil mat
Working voltage
200~240V (120V is customized)
Power
100W/m2, 150W/m2, 200W/m2, 300W/m2 optional
Width
0.5m
Length
1~30m
Insulation
FEP
Thickness
1.6mm

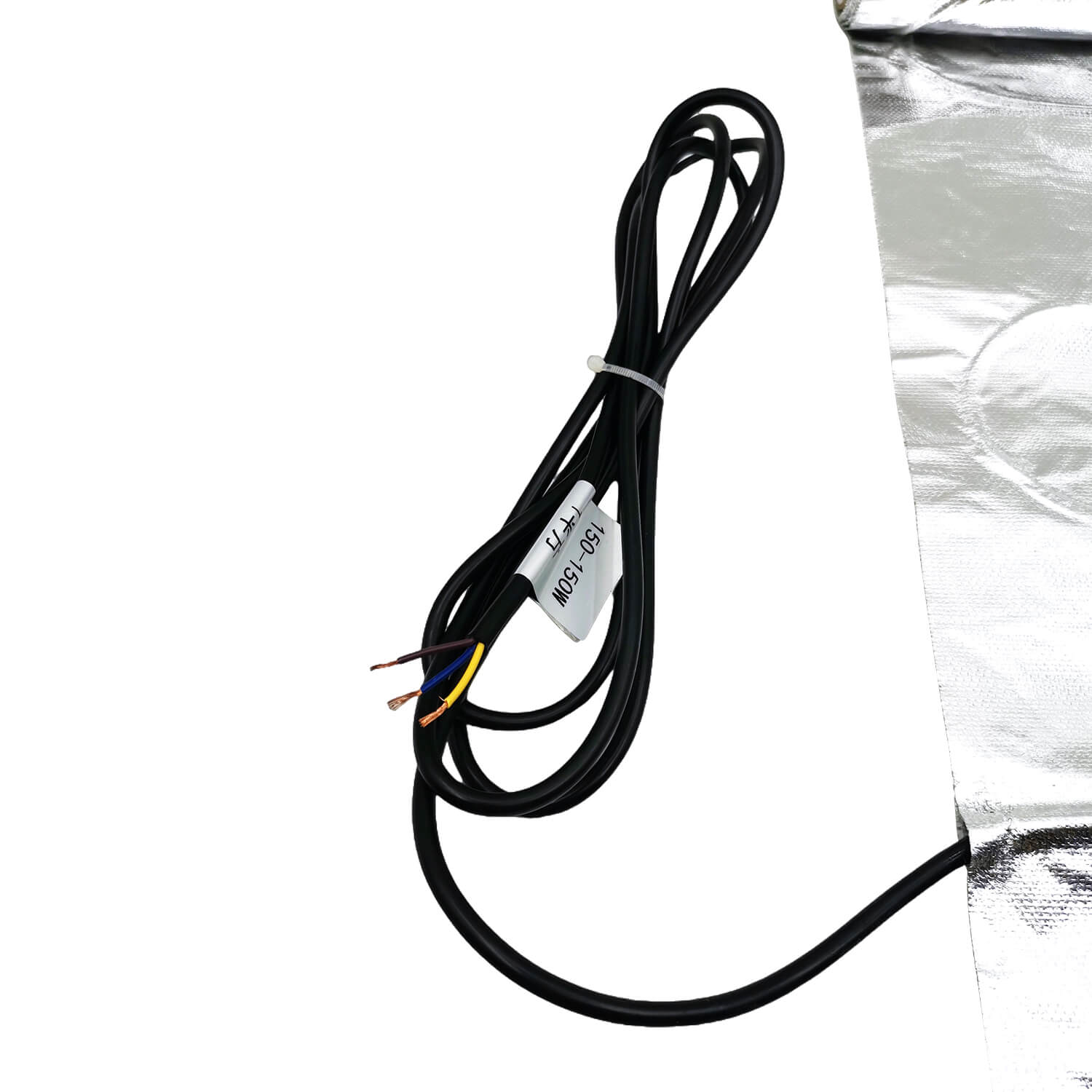

Lengh of lead wire
2.25m
Applications
Floor heating
