Mineral Insulated Heating Cable

Home Mineral Insulated Heating Cable

Mineral insulated heating cable for railway tracks, railway forks antifreeze, customizable

Mineral insulated heating cable for railway tracks, railway forks antifreeze, customizable

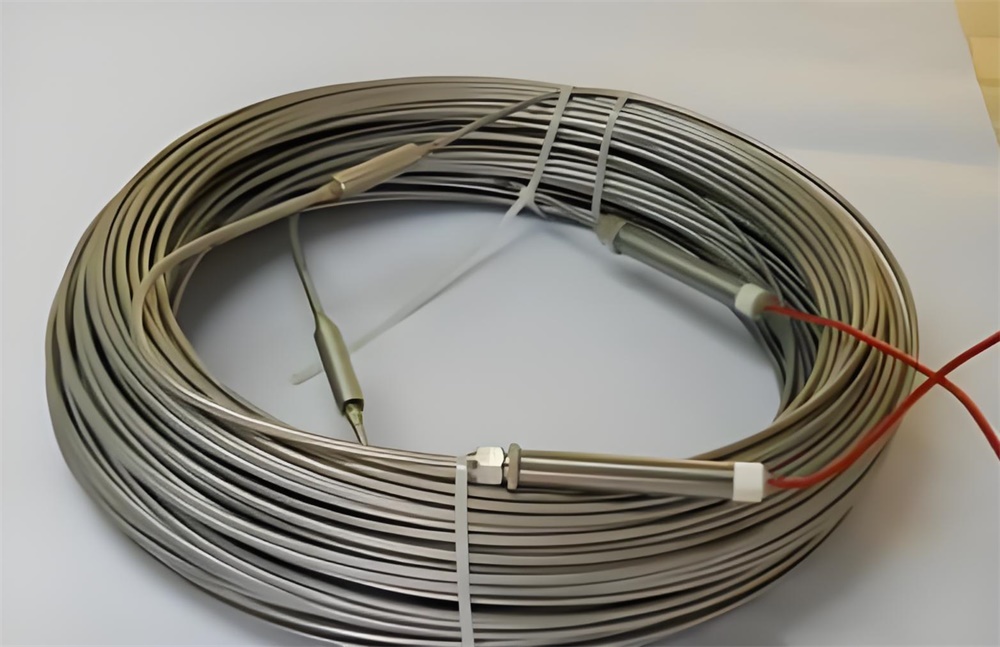

Mineral insulated heating cable is a kind of high performance electric heating cable, mainly used in high temperature, low temperature, corrosion, explosion protection and other special environment heat supply and temperature maintenance.

  • Model :

    Mineral insulated heating cable
  • Working voltage :

    480V/380V/347V/220V 50Hz or customized according to user requirements
  • Color :

    gray
  • Product Details

Product descriptions from the supplier

Overview
Product Description

HN switch melting snow heating strip working environment

Ambient air temperature:+40℃~+70℃

Relative humidity of surrounding air:Not more than 95%(25℃)

Atmospheric pressure is not less than 51.22 kPa (equivalent to an altitude of less than 5400m).

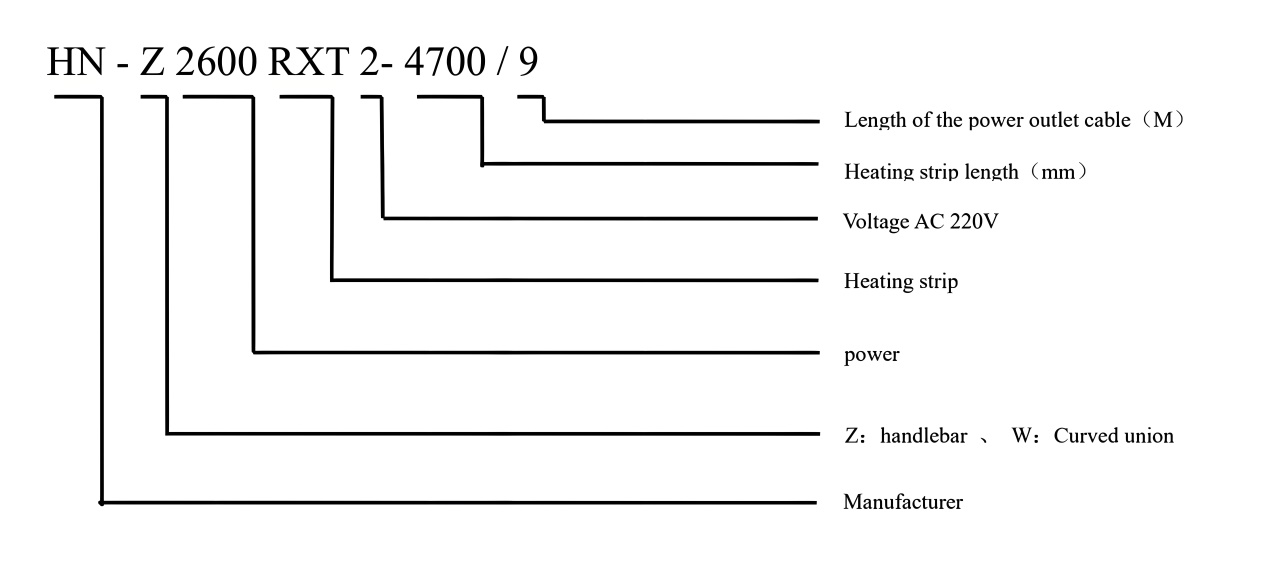

HN switch melting armor heating strip product model




Specification
item
value
Place of Origin
China

Anhui
Brand Name
Minco Heat
Model Number
Railway Heater Tape
Conductor Material
Alloy heating wire
Insulation Material
Magnesium oxide
Jacket
Stainless steel
Number of Conductors
Two Conductor
Application
Heat Tracing for Railway Tracks
Width
15.5mm
Thickness
6mm
Working voltage
customized
Power
customized
Max Surface Temp,
less than 400C dergrees


Railway Heater Technical Parameters
①Power supply voltage: 480V/380V/347V/220V 50Hz or customized according to user requirements
②When the ambient temperature T=-40℃ and the wind speed=10m/s, the system can maintain the temperature of the heating surface of the switch ﹥2℃.
③When the ambient temperature T=-30℃, the snow melting capacity is 10mm/12h (the snow volume of the blizzard stated by the weather station), which can keep the heavy snow melting as it falls, leaving no residual snow and ice;
④Under the rated voltage and the ambient temperature of 35℃, the highest surface temperature of the snow insulation electric heating strip is <400℃, and the surface temperature during the actual snow melting process is <180℃.
⑤Insulation resistance ≥500MΩ.
⑥ Withstand voltage insulation strength ﹥2500V.
⑦Working life ﹥10 years.
⑧The remote control system has multiple functions such as short-circuit protection, leakage protection, current and voltage indication, etc.

Installation drawing
